AM072239WM-SN-R寬帶功率放大器 AMCOM代理商

發布時間：2018-06-01 09:15:42     瀏覽：2550

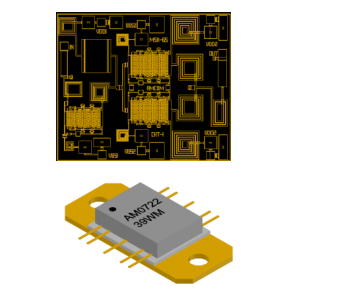

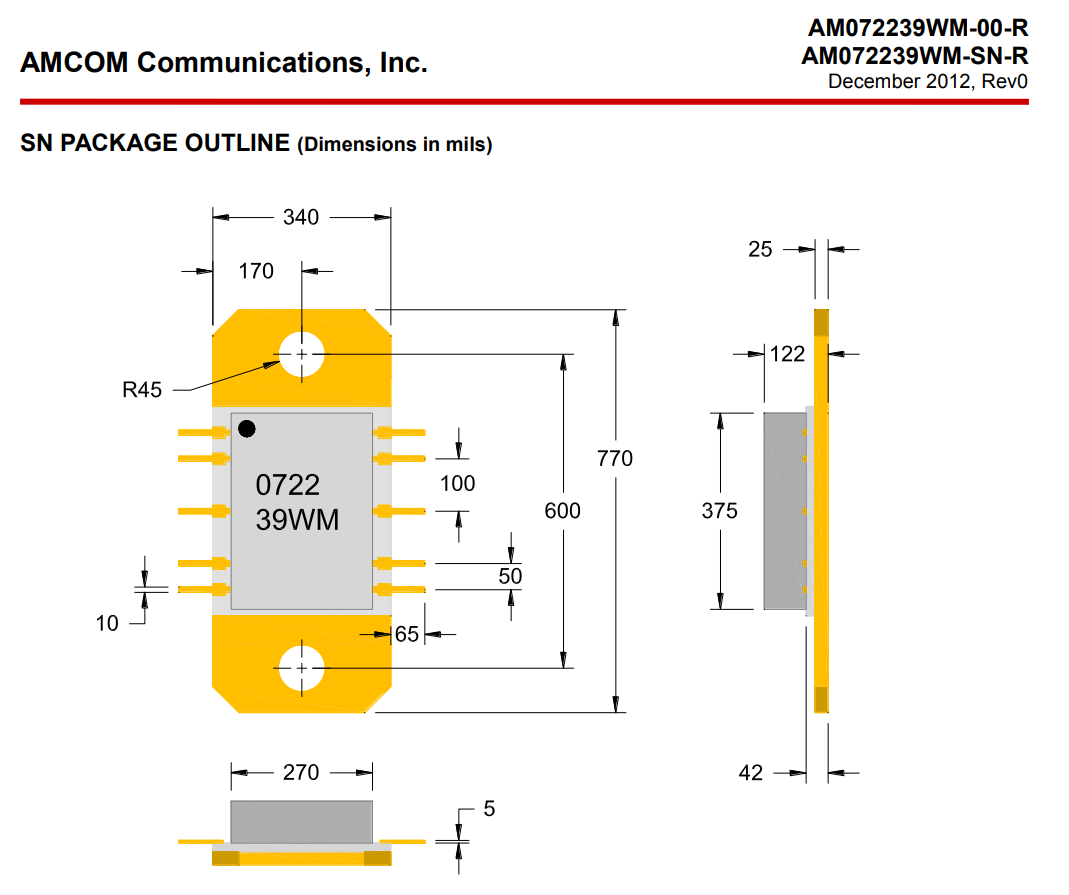

AMCOM的AM072239WM-SN-R是寬帶GaAs MMIC功率放大器。它有一個30dB小信號增益和39 dBm（8W）飽和輸出的額定CW性能功率超過0.7至2.2GHz頻段。MMIC在兩個芯片（-00—R）中提供。包（-SN-R）表單。AM072249WM SN-R是陶瓷封裝中的一種。法蘭和直RF和DC導致裝配下降。由于直流功率高耗散，良好的散熱是必需的，芯片MMIC必須安裝使用直接在金屬脊上進行共晶釬焊。芯片和封裝都是ROHS順從的


型號 頻率(GHz) 增益(dB) P1dB(dBm) Psat(dBm) 效率(%) Vd(V)
AM072239WM-SN-R 0.7-2.2 30 38 39 25 28


AM072239WM-SN-R特征

寬帶寬從0.7到2.2GHz

飽和連續波輸出功率39 dBm

高增益，30dB

輸入/輸出匹配到50歐姆



AM072239WM-SN-R應用


商業電信傳輸
設備
固定微波回程
商用雙向無線電
