AM357037WM-SN-R寬帶GaAs MMIC功率放大器 寬帶微波放大器

發布時間：2018-06-01 10:30:53     瀏覽：2715

AMCOM的AM357037 WM是寬帶GaAs MMIC功率放大器。它有一個26dB小信號增益和37 dBm（5W）飽和輸出的額定CW性能

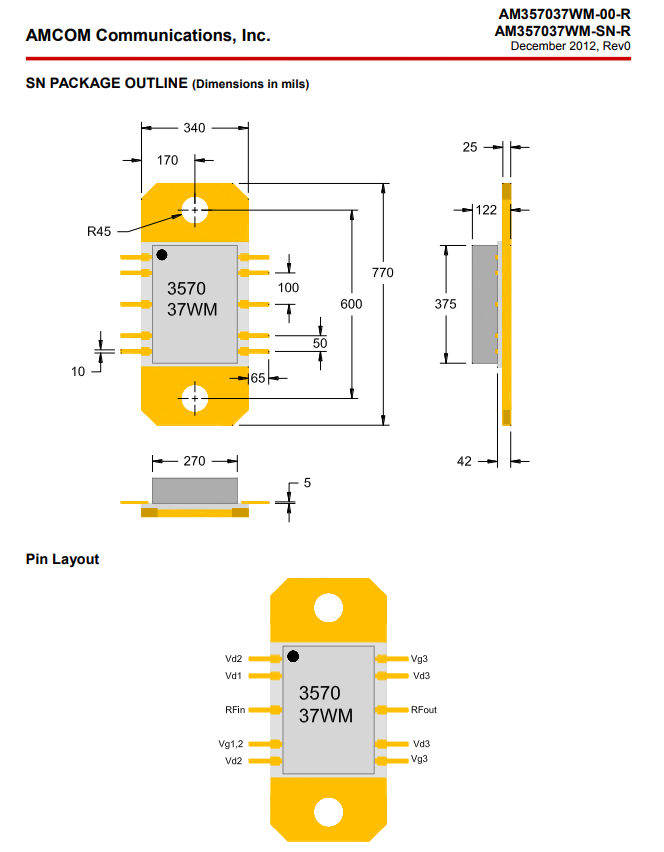

功率超過3.5至7GHz頻段。MMIC在兩個芯片（-00—R）中提供。包（-SN-R）表單。該AM357037 WM SN-R是在陶瓷封裝與A

法蘭和直RF和DC導致裝配下降。由于直流功率高耗散，良好的散熱是必需的，芯片MMIC必須安裝使用直接在金屬脊上進行共晶釬焊。芯片和封裝都是ROHS順從的


型號 頻率(GHz) 增益(dB) P1dB(dBm) Psat(dBm) 效率(%) Vd(V)
AM357037WM-SN-R 3.5-7 26 36 37 24 8


AM357037 WM特征


從3.5到7GHz的寬帶寬
飽和連續波輸出功率37 dBm
高增益26dB
輸入/輸出匹配到50歐姆


AM357037 WM應用


商業電信傳輸
設備
固定微波回程
商用雙向無線電
