HMC634LC4/HMC634LC4TR驅動放大器陶瓷表貼封裝 ADI現貨

發布時間：2018-06-29 11:34:17     瀏覽：1968

HMC634LC4是一款GaAs PHEMT MMIC驅動放大器，采用無鉛4x4 mm陶瓷表貼封裝，工作頻率范圍為5至20 GHz。 該放大器提供高達21 dB的增益、+29 dBm輸出IP3及+22 dBm的輸出功率（1 dB增益壓縮時），功耗為180 mA（+5V電源）。 HMC634LC4驅動放大器非常適合工作頻率范圍為5至20 GHz的微波無線電應用，電壓可偏置為+5V (130 mA)以提供較低增益并改善PAE。 隔直放大器I/O匹配50 Ω，無需外部匹配元件。


品牌 型號 描述 貨期 庫存
ADI HMC634LC4
HMC634LC4TR 		驅動放大器，采用SMT封裝，5 - 20 GHz 現貨 251


應用

  • 點對點無線電
  • 點對多點無線電和VSAT
  • 混頻器LO驅動器

  • 軍事和太空


HMC634LC4優勢和特點


  • 增益： 21 dB
  • P1dB: +22 dBm
  • 飽和功率：
    +23 dBm (17% PAE)
  • 單電源電壓： +5V (180 mA)
  • 50 Ω匹配輸入/輸出
  • 24引腳4x4mm
    SMT陶瓷封裝： 16mm2

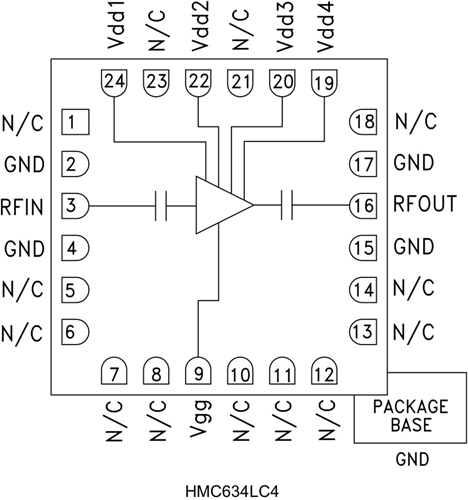

HMC634LC4結構圖
