HMC633LC4/HMC633LC4TR驅動放大器頻率5.5至17 GHz ADI現貨

發布時間：2018-06-29 11:41:51     瀏覽：1835

HMC633LC4是一款GaAs PHEMT MMIC驅動放大器，采用無鉛4x4 mm表貼陶瓷封裝，工作頻率范圍為5.5至17 GHz。 該放大器提供高達30 dB的增益、+30 dBm輸出IP3及+23 dBm的輸出功率（1 dB增益壓縮時），功耗為180 mA（+5V電源）。

HMC633LC4驅動放大器非常適合工作頻率范圍為5.5至17 GHz的微波無線電應用，電壓可偏置為+5V (130 mA)以提供2 dB較低增益并改善PAE。 隔直放大器I/O匹配50 Ω，無需外部匹配元件。


品牌 型號 描述 貨期 庫存
ADI HMC633LC4
HMC633LC4TR 		驅動放大器，采用SMT封裝，5.5 - 17 GHz 現貨 269


應用

  • 點對點無線電
  • 點對多點無線電和VSAT
  • 混頻器LO驅動器

  • 軍事和太空


HMC633LC4優勢和特點

  • 增益： 30 dB
  • P1dB: +23 dBm
  • 飽和功率：+23.8 dBm (24% PAE)
  • 電源電壓： +5V (180 mA)
  • 50 Ω匹配輸入/輸出
  • 24引腳4x4mmSMT陶瓷封裝： 16mm2

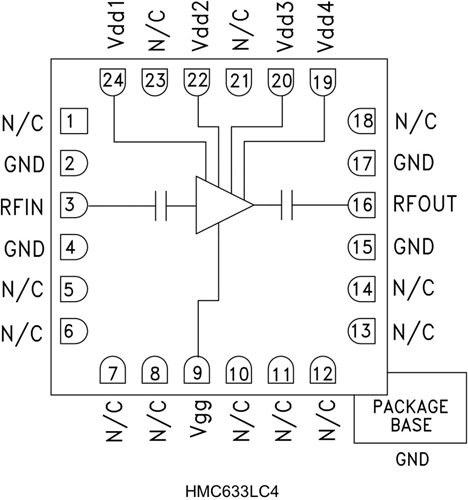

HMC633LC4結構圖
