HMC498/HMC498-SX功率放大器頻率范圍為17至24 GHz ADI現貨

發布時間：2018-06-29 11:21:07     瀏覽：2356

HMC498是一款高動態范圍GaAs PHEMT MMIC功率放大器，工作頻率范圍為17至24 GHz。 HMC498提供24 dB增益，飽和功率為+27 dBm，電源電壓為+5V (25% PAE)。 由于尺寸較小，HMC498放大器可輕松集成到多芯片模塊(MCM)中。 所有數據均采用50 ?測試夾具中的芯片測得，該夾具通過直徑為0.025mm (1 mil)、最小長度為0.31mm (12 mils)的焊線連接。


品牌 型號 描述 貨期 庫存
ADI HMC498
HMC498-SX 		中等功率放大器芯片，17 - 24 GHz 現貨 223


HMC498應用

  • 點對點無線電
  • 點對多點無線電
  • VSAT
  • 軍事和太空


HMC498優勢和特點

  • 輸出IP3： +34 dBm
  • 飽和功率： +27 dBm (25% PAE)
  • 增益： 24 dB
  • 電源電壓： +5V
  • 50 Ω匹配輸入/輸出
  • 裸片尺寸： 2.38 x 1.46 x 0.1 mm

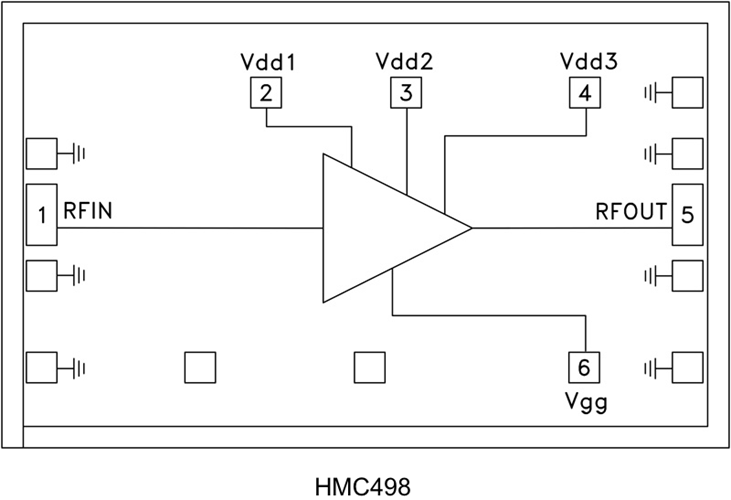

HMC498結構圖
