3448B多路移相器DC-2.0GHz
3448B多路移相器DC-2.0GHz

重要參數

頻率范圍： DC-2.0 GHz

駐波比：1.3~1.5

插損： 0.5~0.75dB

射頻功率：100W均值  5kW峰值

接口形式：N、 SMA 母頭可選

符合美軍標  MIL-C-22750

訂貨周期： 8-10周




品牌：ARRA

產品詳情介紹

3448B型的分辨率為0.1，精度為0.5 /GHz，2448A型為1.5 /GHz。


Frequency Range
(GHz)
Insertion Delay
(Approx) nsec
Minimum Phase
Adjustment

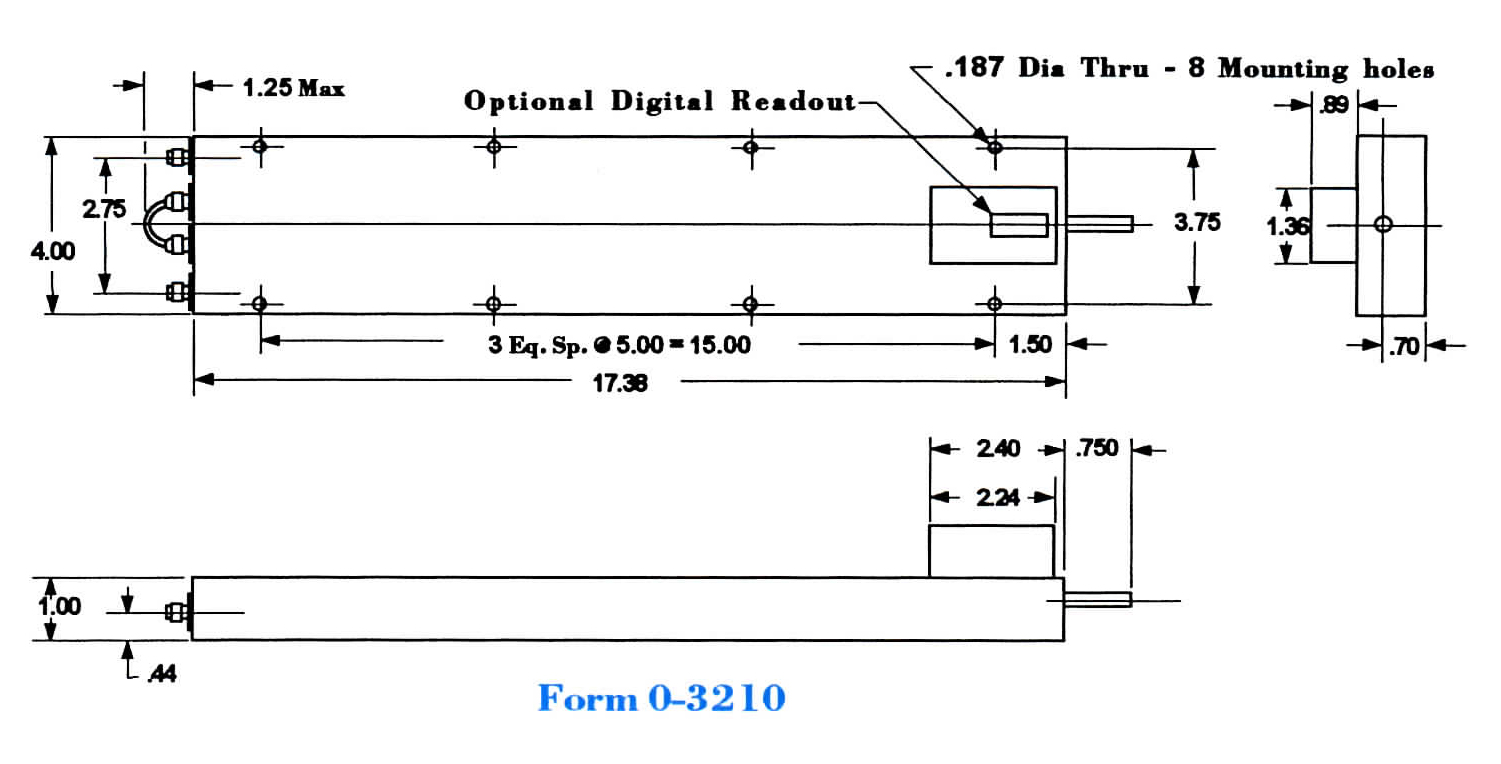

Form Factor
Model No.*


DC-1.03.75 min
6.25 max		900° / GHz0-32102448A

DC-2.02.2 min
3.2 max		360° / GHz0-32133448B

* For Type N Female connectors, precede model number N. Ex: N2448A
For digital readout option, precede model number with D. Ex: DN2448A
