?173645-1汽車連接器現貨庫存Raychem瑞侃

發布時間：2025-02-12 15:55:00     瀏覽：427

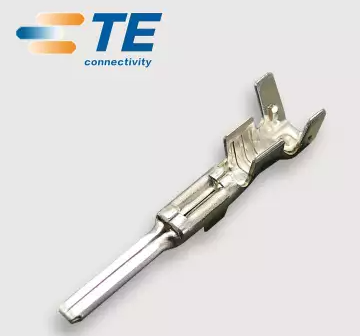

173645-1是一款由Raychem瑞侃生產的汽車連接器，屬于 Multilock 連接器系統，173645-1汽車連接器是一款高性能、高可靠性的連接解決方案，適用于各種汽車電子應用。用于連接各種電氣設備和傳感器。其耐用性和易于安裝的特點使其成為汽車制造和維修中的理想選擇。

173645-1

基本參數

端子類型：公端

接觸面電鍍：錫 (Sn)

對接公端尺寸：寬度 1.8 mm，厚度 0.64 mm

線規：16-20 AWG，線徑范圍 0.5 – 1.25 mm2

額定電流：14 A（典型值），0 – 24 A（低功率）

尺寸與端接特性

兼容的絕緣直徑范圍：2 – 2.6 mm

壓接類型：F 型壓接

線纜端接方法：壓接，端接到導線

使用環境

工作溫度范圍：-30 – 105 °C

絕緣選項：非絕緣

深圳市立維創展科技作為Raychem瑞侃代理商，提供Raychem瑞侃連接器現貨庫存，并具備國內外優勢渠道、價格優勢，歡迎咨詢。
