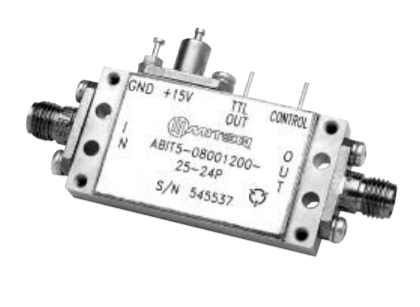

?ABIT5-08001200-30-24P-S1內置測試檢測器放大器

發布時間：2024-11-26 17:00:08     瀏覽：648

Narda MITEQ提供數千個射頻/微波功率放大器，是目前最多的標準功率放大器產品生產線。Narda MITEQ的功率放大器產品涵蓋1KHz至65GHz范圍之內的窄帶至多倍頻程功率放大器。

ABIT5-08001200-30-24P-S1內置測試檢測器功率放大器使用在天文研究、空間、高可靠性、國防軍事、醫療等諸多應用領域。

特征

?根據分壓器或外部電源實現外部閾值操控

?單獨TTL輸出

?高至1/2w的CW功率輸出

?密封的Kovar底部可以滿足嚴苛的國防軍事環境

?可提供更多的其它電氣參數、備用連接器，僅檢測輸出（無射頻）

深圳市立維創展科技有限公司依據加拿大總公司地理優勢，針對MITEQ產品線，無論收購并購如何變化，始終擅長MITEQ產品線訂貨渠道和售后服務支持，歡迎與我們聯絡。


SPECIFICATIONS

Model Number

ABIT5-08001200-25-24P

ABIT5-04000800-25-25P

Frequency range

8–12 GHz

4–8 GHz

Gain

30 dB minimum

30 dB minimum

Noise figure

2.5 dB maximum

2.5 dB maximum

1 dB gain compression

24 dBm minimum

25 dBm minimum

BIT detector threshold

< 20 dBm*

< 20 dBm*

BIT detection format

TTL single ended

TTL single ended

Output power

Logic 1 = +3.7 ±1.3 VDC

Logic 1 = +3.7 ±1.3 VDC

Logic 1 = +0.4 ±0.4 VDC

Logic 1 = +0.4 ±0.4 VDC
