932-10/20/10/SMAF-2 | 5 | 10 | 10 | 20 | +11 to 16 nominal, +17 max. | +7 to +10 nominal | SMA-Feamle | SMA-Feamle | +8V@105mA,+12V max. | 2 |
932AF-20/599/KF | 13.25 | 20 | 26.5 | 40 | 0 to +5 nominal, +10 max. | 20 nominal | K-Female | WR-28 waveguide, UG-599/U Flange | +8 V@470mA,+15 V max. | 2 |
932KF-10/KF | 9 | 13.25 | 18 | 26.5 | +5 nominal, +10 max | +15 nominal | K-Female | K-Female | +8 V@82 mA,+15 V max. | 2 |
932KF-30/3.5mmF | 9 | 13.25 | 18 | 26.5 | +3 to +5 nominal, +10 max. | +31 nominal | 3.5 mm Female | 3.5 mm Female | [email protected], +12 V max. | 2 |
934BF-10/383 | 8.25 | 12.5 | 33 | 50 | +2 nominal, +5 max. | +10 nominal | K-Female/SMA- Female | WR-22 waveguide, UG-383/U Flange | [email protected] A,+12V max. | 4 |
934BF-13/383 | 8.25 | 12.5 | 33 | 50 | 0 to +2 nominal, +5 max. | +14.5 nominal | K-Female/SMA- Female | WR-22 waveguide, UG-383/U Flange | [email protected] A,+12V max. | 4 |
934EF-20/387 | 15 | 22.5 | 60 | 90 | +5 to +7 nominal, +12 max. | +20 nominal | K-Female/SMA- Female | WR-12 waveguide, UG-387/U Flange | +6 to +8V@650mA,+12V max. | 4 |
934UF-10/383 | 10 | 15 | 40 | 60 | 0 nominal, +10max. | +13 nominal | K-Female/SMA- Female | WR-19 waveguide, UG-383/U-M Flange | +6V@143mA,+6V max. | 4 |
934VF-10/385 | 12.5 | 18.75 | 50 | 75 | +5 nominal, +10 max. | +11 nominal | K-Female/SMA- Female | WR-15 waveguide, UG-385/U Flange | +8V@270mA,+15V max. | 4 |
934VF-15/385 | 12.5 | 18.75 | 50 | 75 | +5 nominal, +10 max. | +15 nominal | K-Female/SMA- Female | WR-15 waveguide, UG-385/U Flange | +10V@321mA,+15V max. | 4 |
936EF-10/387 | 10 | 15 | 60 | 90 | +4 nominal,+10 max. | +13 nominal | K-Female/SMA- Female | WR-12 waveguide, UG-387/U Flange | +6V@237mA,+12V max. | 6 |
936EF-20/387H | 10 | 15 | 60 | 90 | +5 nominal, +10 max. | +20 nominal | K-Female/SMA- Female | WR-12 waveguide, UG-387/U Flange | +6V@540mA,+12V max. | 6 |

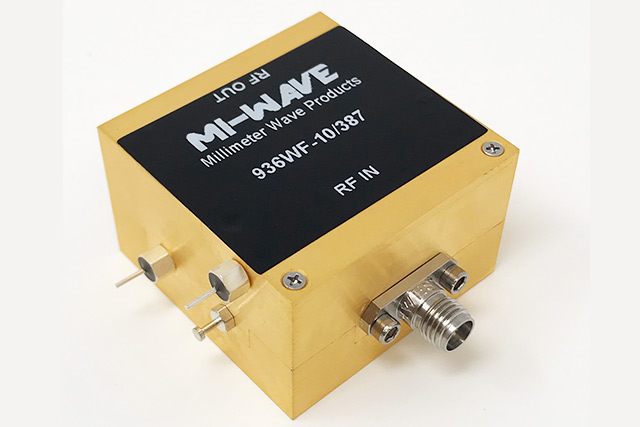

936WF-10/387 | 12.5 | 18.33 | 75 | 110 | +6 nominal,+10 max. | +10 nominal | K-Female/SMA- Female | WR-10 waveguide, UG-387/U-M Flange | +6V@309mA,+12V max. | 6 |
936WF-15/387 | 12.5 | 18.33 | 75 | 110 | +5 to+10 nominal, +15 max. | +16 nominal | K-Female/SMA- Female | WR-10 waveguide, UG-387/U-M Flange | +12V@500mA,+15V max. | 6 |
936WF-20/387 | 12.5 | 18.33 | 75 | 110 | +5 to+10 nominal, +15 max. | +20 nominal | K-Female/SMA- Female | WR-10 waveguide, UG-387/U-M Flange | +13V@410mA,+15V max. | 6 |
938EF-16/387H | 7.5 | 11.25 | 60 | 90 | +3 to +5 nominal, +10 max. | +17 nominal | K-Female/SMA- Female | WR-12 waveguide, UG-387/U Flange | +8V@590mA,+12V max. | 8 |
938W-80/106/15/388 | 8.9 | 11.78 | 80 | 106 | +7 nominal, +10 max. | +15 nominal | K-Female/SMA- Female | WR-10 waveguide, UG-387/U-M Flange | +13V@180mA,+15V max. | 9 |
938WF-10/387 | 10 | 13.25 | 80 | 106 | +7 nominal, +10 max. | +15 nominal | K-Female/SMA- Female | WR-10 waveguide, UG-387/U-M Flange | +6V@180mA,+12V max. | 8 |
