MTC30-12S AC-DC醫療ITE電源模塊ARCH

發布時間：2024-04-23 08:51:38 瀏覽：6006

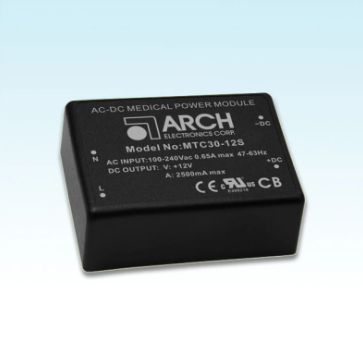

　　MTC30 AC-DC醫療電源模塊ARCH是一個30瓦的超緊湊型電源模塊，尺寸為2.52“ x 1.8” x 0.93“，可以安裝在PCB上。它具有通用輸入范圍90-264VAC，低空載功耗小于0.15W，并通過自然空氣對流冷卻。該模塊具有低漏電流、寬工作溫度范圍(-40°C~+80°C，降額)、低紋波和噪聲、隔離等級II，以及I/O隔離達到4000VAC。可選螺絲端子使其安裝更加方便。此外，該模塊符合UL/IEC 60950-1、UL/IEC 60601-1醫療安全認證，具有2xMOPP的醫療安全認證，并享有3年產品保修。


　　尺寸：2.52“ x 1.8” x 0.93“

　　I/P：90~264VAC

　　輸出：5、12、15、24 VDC

　　I/O 隔離：4000VAC

　　工作溫度：-40~ +80°C

Model No. (Single Output)		MTC30-5S	MTC30-12S	MTC30-15S	MTC30-24S
Max Output Wattage (W)		25W	30W	30W	30W
Input	Voltage	90-264 VAC or 120-370 VDC
	Frequency(Hz	47-440 Hz
	Current (Full load	650 mA max.(115 VAC)/400 mA max.(230 VAC)
	nrush current (<2ms,Cold Start)	30 Amax.(115 VAC)/60 Amax.(230 VAC)
	Leakage Current	<0.1mA/264 VAC(Touch Current)
	No Load Input Power (<240 VAC	<0.15W
	External Fuse (recommend)	3.15 A slow blow type
Output	Voltage (V.DC.	5V	12V	15V	24V
	Voltage Accuracy	±2%
	Current (mA)ma	5000	2500	2000	1250
	Line Regulation (LL-HL)(typ.	±0.5%
	Load Regulation (10-100%)(typ.)	±1%
	Maximum Capacitive Load (at 230 VAC)	6800uF	1600uF	1200uF	470uF
	Ripple &Noise (max.) Note 1)	100mVp-P	150mVp-P	150mVp-p	240mNp-P
	Eficiency (at 230 VAC	84%	89%	86%	86%
	Hold-up Time	10 ms min
Protection	Over Power Protection	Hiocup technique,auto-recovery
	Over Voltage Protection	Zener diode clamp
	Short Circuit Protection	Hiocup mode (automatic recovery
solation	nput-Output (V.AC)	4000V
Environment	Operating Temperature	40°℃…+80°℃(with derating
	Storage Temperature	40°℃…+90°℃
	Max Case Operating Temperature	84℃
	Temperature Coefficient	±0.05%C
	Altitude During Operation	5000m
	Humidity	up to 95%RH
	MTBF	>250,000 h@25°C(MIL-HDBK-217F)
	Atmospheric Pressure	540 hPa to 1060 hPa
Physical	Dimensions (Lx WxH	2.52x1.8x0.93 Inches(64.1x45.6x23.5mm) Tolerance ±0.5 mm,Height Tolerance±1 mm
	Case Material	Plastic resin (flammability to UL 94V-0)
	Weight	135 g
	Cooling Methoc	Free air convection
Safety	Approva	cUL/UL Standard: UL 60950-1,CAN/CSA C22.2 No.60950-1-07 ANSUAAMI ES60601-1 (2005+C1:09+A2:10),CAN/CSA-C22.2 No.60601-1 (2008).2x MOPP CB Standard IEC 60950-1:2005 (2nd Edition)+Am 1:2009+Am 2:2013 EC 60601-1:2005(3rd Edition)+CORR.1 (2006)+CORR.2 (2007)+AM1 2012)or IEC 60601-1 (2012 reprint),2x MOPP
EMC	Conducted and radiated EM	EN55011 class B (Radiation Class A for MTC30 A2 Series)
	EMS	EN60601-1-24th edition

深圳市立維創展科技授權代理ARCH電源模塊產品，提供高效率，高品質與小尺寸特性的產品滿足市場趨勢和需求，并提供技術支持服務，歡迎咨詢。
