?SQ76003AQNC電源模塊SILERGY

發布時間：2023-02-15 16:46:06     瀏覽：2045

SILERGY(矽力杰）SQ76003AQNC是款高效率,3MHz,3A內嵌功率電感同步降壓穩壓器，SQ76003AQNC在這個中小型封裝（3.0mm×3.0mm，H=1.1mmmax）中集成化功率電感和集成芯片。


特征

內部電源開關（頂端/底端）的低RDS(ON)：35/15mΩ

2.75~5.5V頻率范圍

3MHz工作頻率最大限度減少了外部模塊

內部軟啟動控制浪涌電流

3A連續性輸出電流性能

關閉模式損耗<0.1μA電源電流

100%Dropout使用

電源優異檢測器

過電流保護/欠壓鎖定/溫度保護

滿足RoHS標準且無鹵阻燃

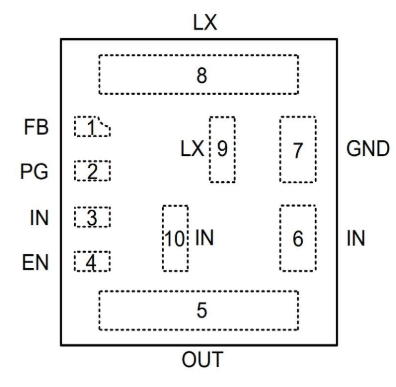

緊湊型封裝：QFN3×3-10

SILERGY(矽力杰）主要生產電源芯片、電源模塊等模擬器件。

針對SILERGY矽力杰的電源模塊產品，立維創展提供pin to pin原位替代產品，現貨優勢價格，歡迎咨詢。

詳情了解SILERGY電源模塊請點擊：http://m.yzgnjsb.cn/brand/70.html
