MPN24AD03-UP-T模塊現貨Cyntec

發布時間：2022-06-29 16:55:06     瀏覽：1536

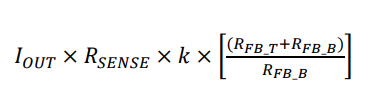

在電池充電器技術應用中，大載荷將影響輸出電纜線電壓降低。MPN24AD03-UP-T具備內嵌電纜線補償作用。可調節線路補償（mV）/A根據下列等式1設置：


WhenREN/CONPSEL360knorFloating,k=0.8

REN/COMPSEL=180k0,k=1.2

REN/COMPSEL91kn,k=1.6

REN/COMPSEL43kndisableLineCompensation

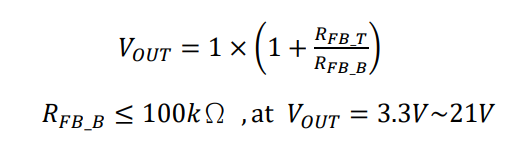

MPN24AD03-UP-T具備內部1V±1.0%參考電壓。輸出電壓可根據分壓電阻器（RFB\uT和RFB\uB）展開編程。輸出電壓可根據方程式2計算，電阻器的選擇可參考表1。


輸出電流受限默認值為3.5A，外部電阻RSENSE=10mΩ，當（CSP\uOUT）-（CSN\uOUT）電壓高過35mV并實現電流受限時，驅動器關停。MPN24AD03-UP-T根據外部感應式電阻器Rsense提供較低的輸出過電流保護。請參考下面的公式3以獲取下限。


深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源MUN3CAD03-SE產品。目前，立維創展存有大批量Cyntec電源庫存，例如型號：MUN12AD03-SEC，MUN3CAD03-SE等。產品原裝原廠，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解Cyntec請點擊：http://m.yzgnjsb.cn/brand/16.html
