?MUN24AD01-SH模塊Cyntec

發布時間：2022-06-20 16:34:57     瀏覽：1958

MUN24AD01-SH模塊應聯接到低交流阻抗開關電源，高電感開關電源或路線電感可能會影響到MUN24AD01-SH的穩定性能。輸入電容器需要直接安裝在MUN24AD01-SH的輸入管腳上，以最小化輸入紋波電壓并保證MUN24AD01-SH穩定性能。

為了更好地減少導出紋波并提高對階躍負載波動的動態響應，需要在導出端采用額外的電容器。建議采用低ESR陶瓷電容來提高MUN24AD01-SH的導出紋波和動態響應。

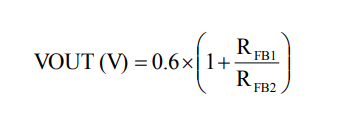

輸出電壓可利用分壓電阻器RFB1和RFB2實現編程（RFB1從FB聯接到Vout；RFB2從FB聯接到GND）。假設RFB1設置為100千歐，輸出電壓可按公式1計算，典型輸出電壓的電阻如表1所示。


所有的熱實驗條件均滿足JEDECEIJ/JESD51標準。因此，實驗板規格尺寸為30mm×30mm×1.6mm，共4層。隨后在0LFM條件下，采用安裝使用在有效的熱導率檢測板上的試驗測量Rth（jchoke-a）。MUN24AD01-SH模塊設計用來機殼溫度少于110°C時使用，無論輸出電流、輸入/輸出電壓或工作溫度怎么改變。

深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。目前，立維創展存有大批量Cyntec電源庫存，例如型號：MUN12AD03-SEC，MUN3CAD03-SE等。產品原裝原廠，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解Cyntec請點擊：http://m.yzgnjsb.cn/brand/16.html
