MUN12AD05-SMF系列評估板

發布時間：2022-06-01 17:16:44     瀏覽：1581

評估板主要用于MUN12AD05-SMF系列高效率直流/直流電源模塊。評估板在負載電流高至5A時形成+5.0V輸出電壓。輸出設置電阻器RFB可以調節，以評估不同的輸出電壓。MUN12AD05-SMF系列開關頻率為600kHz，使用所提供的模塊可實現高至92%的效率。



電氣規格：

MUN12AD05-SMFH

Parameters

Symbol

Value

Unit

Input Voltage Range

VIN

4.5~20

V

Output Voltage

VOUT

1.9~5

V

Output Current

IOUT

5

A



MUN12AD05-SMFL

Parameters

Symbol

Value

Unit

Input Voltage Range

VIN

4.5~20

V

Output Voltage

VOUT

0.6~1.8

V

Output Current

IOUT

5

A

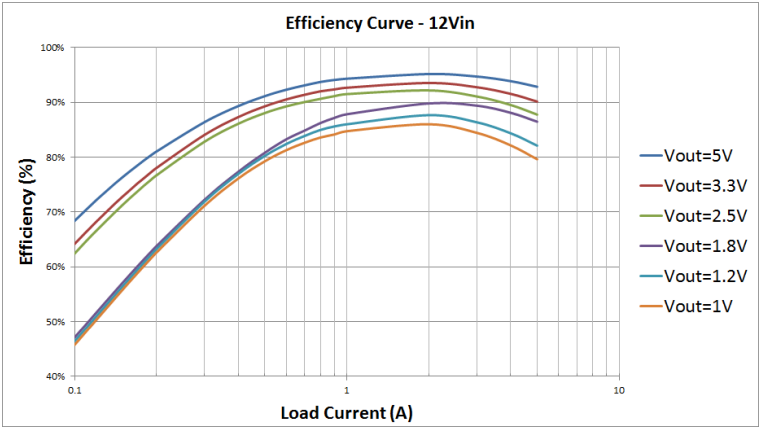

EVALUATION BOARD&EFFICIENCY::

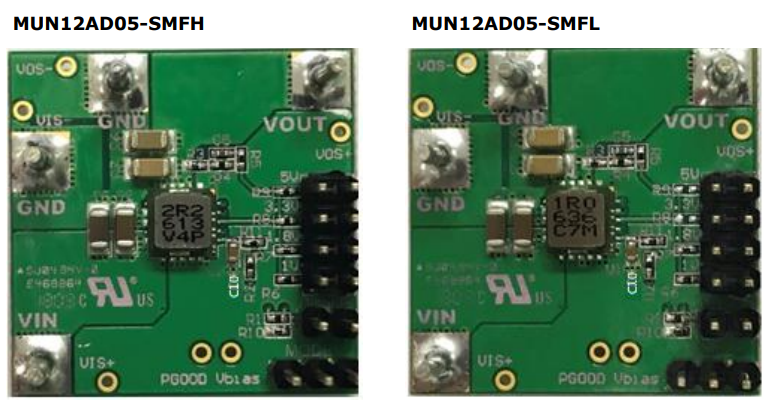

MUN12AD05-SMF SERIES EVB


輸出電壓VOUT可通過改變RX（R6～R9）進行編程。




深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。產品原裝原廠，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解MUN12AD05-SMFH請點擊：http://m.yzgnjsb.cn/article/3347.html

詳情了解MUN12AD05-SMFL請點擊：http://m.yzgnjsb.cn/article/3352.html
