MUN12AD03-SEC評估板Cyntec

發布時間：2022-05-25 16:59:36     瀏覽：1037

Cyntec評估板適合用在MUN12AD03-SEC高效率直流/直流電源模塊評估板在負載電流高至3A時形成+5.0V輸出電壓。輸出電壓可根據分壓電阻器（RFB\UT和RRBB）實現編程。MUN12AD03-SEC開關頻率為1MHZ，采用所提供的模塊可實現高至91%的效率。

電氣規格：

Parameters

Symbol

Value

Unit

Input Voltage Range

VIN

4.5~17

V

Output Voltage

VOUT

1.0~5.0

V

Output Current

IOUT

3

A

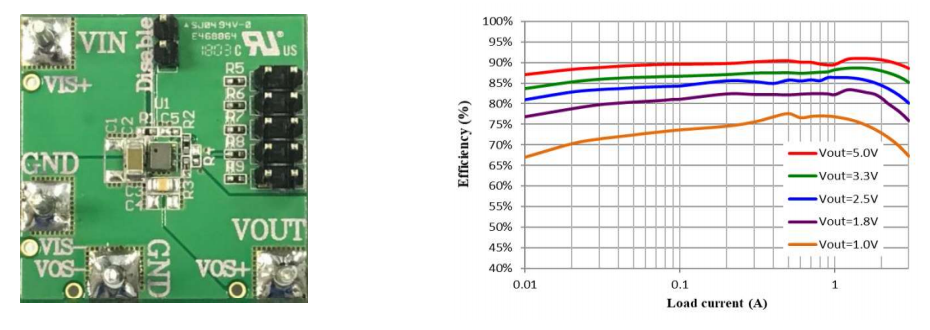

EVALUATION BOARD & EFFICIENCY :


MUN12AD03-SEC具備內部0.8V+1.5%參考電壓。輸出電壓可根據分壓電阻器（RFB\uT和RFBB）實現編程。輸出電壓可根據方程式1計算，電阻器的選擇可參考表1。


深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。產品原裝原廠，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解MUN12AD03-SEC請點擊：http://m.yzgnjsb.cn/product/2999.html
