?TPSM82813SILR替代產品方案MUN12AD03-SEC

發布時間：2022-02-15 17:17:19     瀏覽：1344

TI的uSIL封裝非隔離電源模塊產品TPSM82813參數如下：

電流

輸入電壓

輸出電壓

封裝尺寸

3A

2.75~6V

0.6~5.5V

3.0*4.0mm


此模塊集成了電感，易于使用，常用于高功率密度的電信、測試測量以及醫療領域。同時這個模塊具有PWM應用模式，可以在輕負載情況下自動進入省電模式，從而在正規負責范圍內維持高效率。


與TPSM82813引腳定義一致的還有TPS82810 。

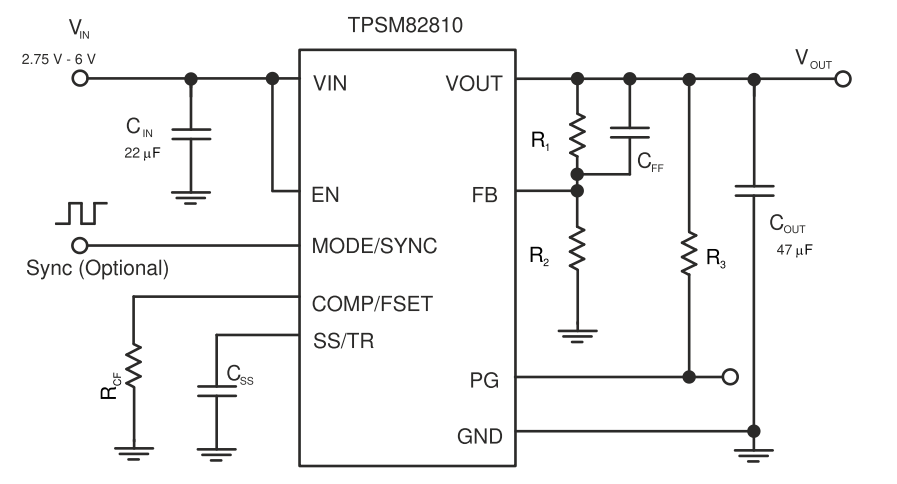

應用電路圖如下：

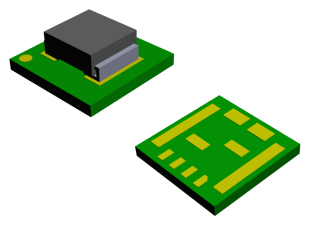

臺達旗下Cyntec 也提供類似的uPOL非隔離DC-DC電源模塊產品MUN3CAD03-SF，電性參數如下：

電流

輸入電壓

輸出電壓

封裝尺寸

3A

2.75~5.5V

0.6~3.3V

3.0*3.0mm

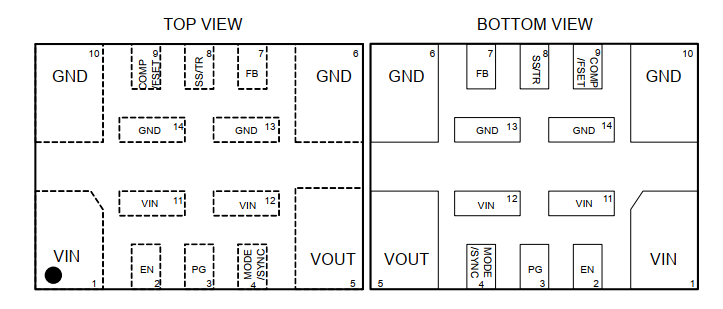

引腳定義如下圖：






更詳細的應用資料和技術指導，請聯系我們的銷售工程師。

深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。產品原裝進口，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解MUN3CAD03-SF請點擊：http://m.yzgnjsb.cn/article/3099.html
