TPSM41625電源模塊替代方案

發布時間：2022-02-11 17:24:29     瀏覽：1407

TI的電源模塊TPSM41625可提供高達25A的電流，結構簡單易于使用，并可以支持并聯，體積僅11*16mm .

工作電流

輸入電壓

輸出電壓

25A

4~16V

0.6~7.1V

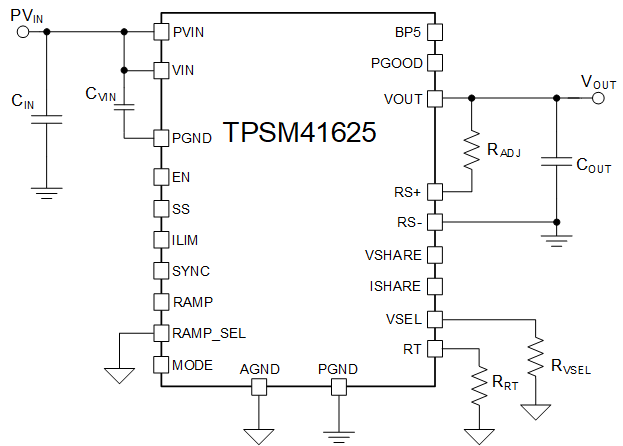

其電路簡圖如下：




鑒于當前市場TI物料緊缺情況，臺灣臺達Cyntec提供替代物料方案是HS20116-01 ，產品體積為14.5*14.5mm ,也可以支持4PCS 產品并聯。



工作電流

輸入電壓

輸出電壓

20A

4.5~20V

0.8~5.5V

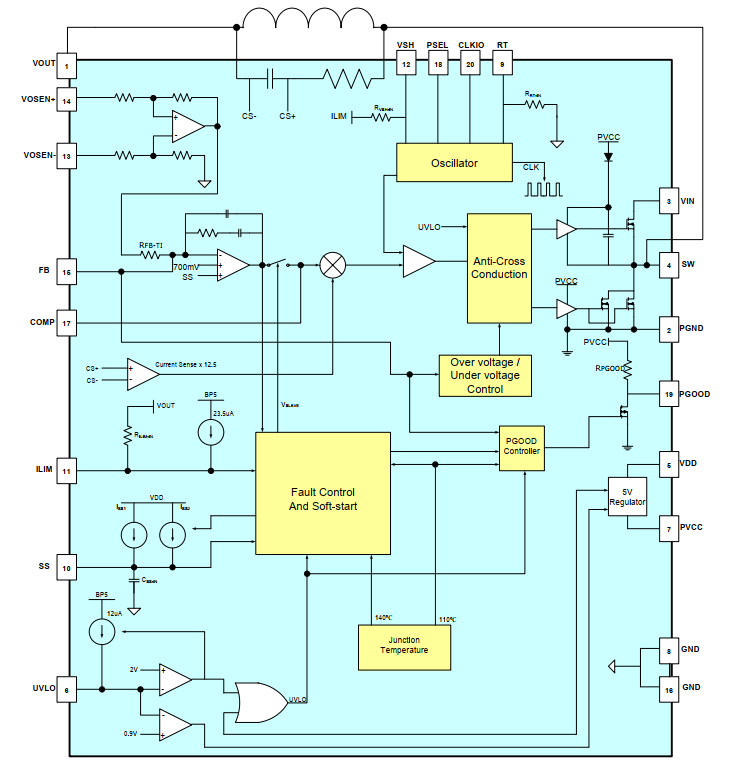

電路簡圖如下：


使用POL電源模塊的優勢在于簡單、大幅節省PCB空間，其紋波一樣獲得更佳的效果。在給DSP 、FPGA等主芯片供電的時候，也可以選用合適的電容來確定上電啟動時間。具體計算公式如下：


如需要更多更詳細的產品資料，歡迎聯系我們的銷售工程師。

深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。產品原裝進口，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解Cyntec電源模塊請點擊：http://m.yzgnjsb.cn/brand/16.html
