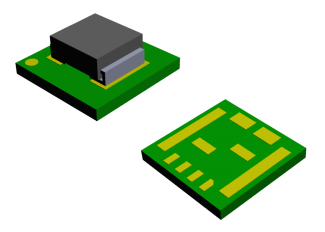

內嵌電感芯片式DC-DC電源模塊MUN3CAD03-SF

發布時間：2021-09-24 14:35:31     瀏覽：6641

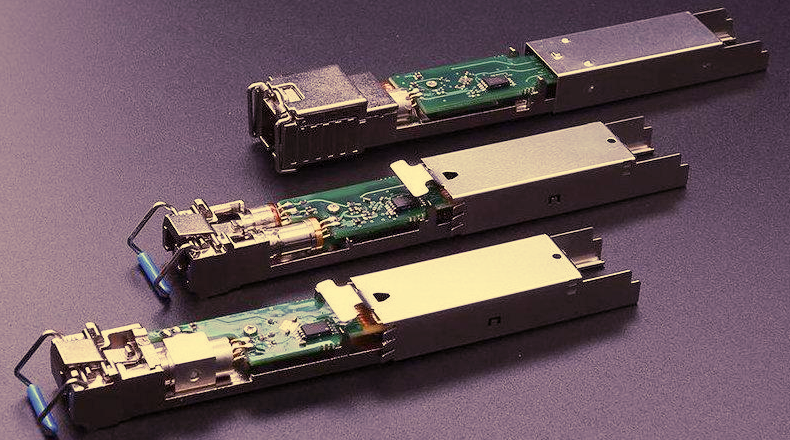

在一些精密類型的產品上，對電源芯片供電和相匹配的阻、容、感的體積存在較大考驗，如光模塊產品。怎樣在這樣小的PCB上實現光、電芯片的供電需求，知名電源廠商臺達/Cyntec很早就提出了uPOL的設計，并已經廣泛應用于200G 、400G、800G的光模塊產品上。




MUN3CAD03-SF

工作電流：3A

輸入電壓：2.75-5.5V

輸出電壓：0.6-3.3V

體積：3.0*3.0*1.3mm

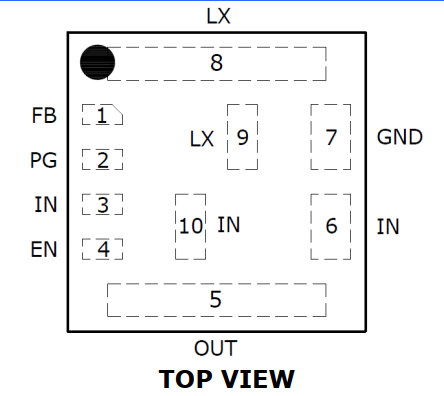

此電源模塊集成了一顆電感，引腳定義如下圖：

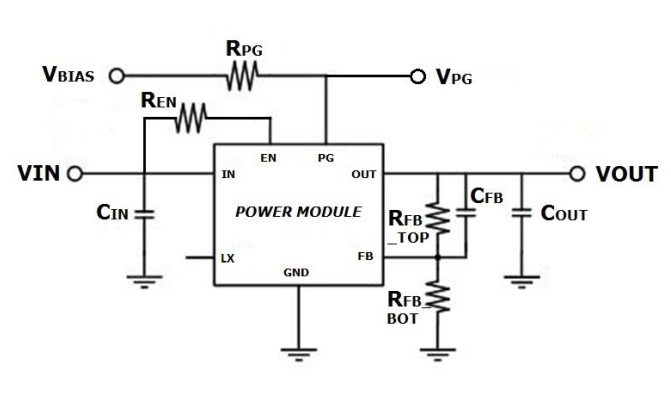

接線方式如下圖：




產品經過行業多家光模塊大廠驗證，符合可靠性完全測試標準。

而且，現貨供應，性價比超高。

深圳市立維創展科技授權代理Cyntec全線產品，致力為客戶提供高品質、高質量、價格公正的電源模塊產品。產品原裝進口，質量保證，并為中國大陸市場提供技術支持，歡迎咨詢。

詳情了解Cyntec電源模塊請點擊：http://m.yzgnjsb.cn/brand/16.html
