VICOR電源ENMods-PFC前端

發布時間：2021-05-07 17:01:36 瀏覽：2655

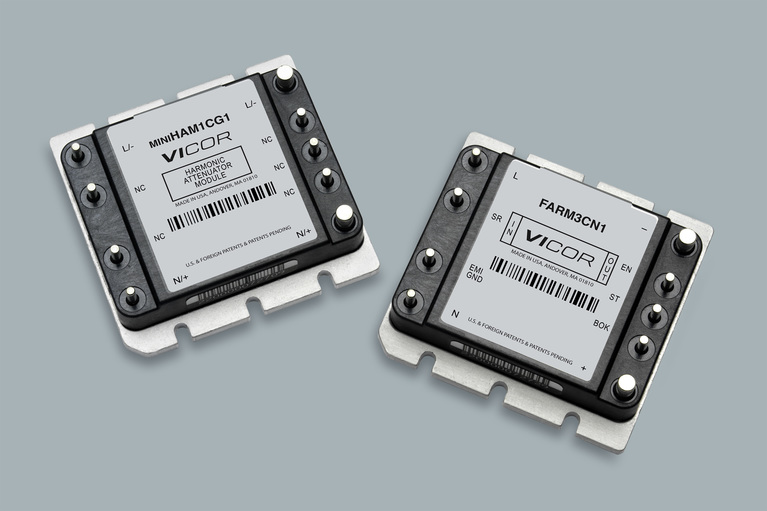

VICOR電源模塊ENMOD系統是集無源功率因數校正和自動調節功能模塊于一體式的交流前端解決方案。VICOR電源模塊的ENMOD操作系統選用濾波和保持電容相互結合的形式，充分滿足EN61000-3-2諧波電流，EN55022B級輻射，EN61000-4-5浪涌抗擾度，EN61000-4-11線干擾和EN61000-3-3浪涌電流需求。與有源PFC解決方案有所不同，MiniHAM不產生EMI，大大簡化和減少了操作系統噪聲和濾波需求。

特征和優勢

自動調節115/230Vac輸入；

諧波電流衰減系數滿足EN61000-3-2；

EMI濾波滿足EN55022，B級（建議帶濾波器）；

瞬態抗擾度滿足EN61000-4-5。

深圳市立維創展科技是VICOR電源模塊的代理經銷商，主要提供DC-DC、AC-DC電源模塊，隔離、非隔離電源模塊轉換器等，立維創展致力為客戶提供高品質、高質量、價格公正的微波元器件產品，歡迎咨詢.

VICOR電源ENMods-PFC前端

Part Number	產品等級	引腳形式	符合RoHS	基板
EN1TS1	–40°C to +100°C	Short ModuMate	No	Slotted
EN1TN2	–40°C to +100°C	Long ModuMate	No	Threaded
EN1TN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1TG1	–40°C to +100°C	Long RoHS	Yes	Slotted
EN1T23	–40°C to +100°C	Long	No	Through hole
EN1T22	–40°C to +100°C	Long	No	Threaded
EN1T21	–40°C to +100°C	Long	No	Slotted
EN1T11	–40°C to +100°C	Short	No	Slotted
EN1HN3	–40°C to +100°C	Long ModuMate	No	Through hole
EN1HN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1HG1	–40°C to +100°C	Long RoHS	Yes	Slotted
EN1H21	–40°C to +100°C	Long	No	Threaded
EN1CS1	–20°C to +100°C	Short ModuMate	No	Slotted
EN1CN3	–20°C to +100°C	Long ModuMate	No	Through hole
EN1CN2	–20°C to +100°C	Long ModuMate	No	Threaded
EN1CN1	–20°C to +100°C	Long ModuMate	No	Slotted
EN1CG3	–20°C to +100°C	Long RoHS	Yes	Through hole
EN1CG2	–20°C to +100°C	Long RoHS	Yes	Threaded
EN1CG1	–20°C to +100°C	Long RoHS	Yes	Slotted
EN1CF2	–20°C to +100°C	Short RoHS	Yes	Threaded
EN1C23	–20°C to +100°C	Long	No	Through hole
EN1C22	–20°C to +100°C	Long	No	Threaded
EN1C21	–20°C to +100°C	Long	No	Slotted
EN1C13	–20°C to +100°C	Short	No	Through hole
EN1C12	–20°C to +100°C	Short	No	Threaded
EN1C11	–20°C to +100°C	Short	No	Slotted
