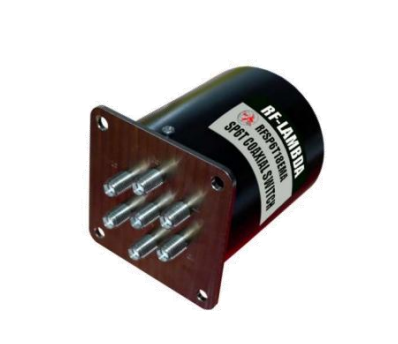

RF-LAMBDA機電開關的特性
發布時間：2020-12-22 16:56:35 瀏覽：1680
RF-LAMBDA機電開關是指能夠斷開電路、中斷電流或使其流向其他電路的電子元件。最常見的開關是帶有一個或多個電子觸點的人造機電設備。觸點“閉合”表示電子觸點接通，允許電流流動；開關“斷開”表示電子觸點不導電形成開路，電流不允許流動。
機電開關的特性
1.探測距離長：與感應接近開關相比，可獲得較長的探測距離。例如，點火開關的探測距離可以達到幾十米，反射已經從幾厘米到幾米。由于非接觸式檢測，它不會損壞被測物體，也不受其影響。
2.檢測對象廣泛：能夠探測玻璃、玻璃和金屬等物體。
3.響應速度快：檢測介質本身是高速的，因為幾乎沒有機械作用，所以可以獲得非常高的檢測速度。
4.高分辨率：由于光沿直線傳播，波長較長，分辨率高，適用于小目標和高精度位置檢測。
5.易于獲得規則的探測區域：采用透鏡等光學系統，易于集中、擴散和折射。可根據不同的檢測對象和不同的使用環境，適當選擇具有一定檢測區域的產品。
6.不受磁場和振動的影響：檢測開關一般安裝在強磁場和振動的地方。從本質上講，光電開關受其影響較小，因此可以可靠地工作。
7.利用光檢測的特點：可以做色碼、形狀特征選擇檢測。
8.使用壽命長：由于是非接觸式檢測，使用壽命長，特別是當采用LED作為光源時，控制輸出采用非接觸方式，使用壽命更長。
深圳市立維創展科技是RF-LAMBDA的經銷商， RF-LAMBDA的產品包括：無源控制模塊，有源控制模塊，寬帶功率放大器，窄帶PA和驅動放大器，產品生產線均根據美國軍用設計標準與生產制造，逐步廣泛運用于航天，航空，軍用設備，衛星通訊，雷達等高端工程項目。
*部分型號可咨詢我們的銷售代表。
Part Number | Frequency Range | Insert. Loss | Isolation | Avg. Power | Switching Speed | Connector | Control Type |
| (GHz) | (dB) | (dB) | (W) | (ms) |
|
|
|
|
|
|
|
|
|
|
RFSP6T18EMA-S | DC~18.000 | 0.2(DC~4GHz) | 75(DC~18GHz) | 1 | 20 | SMA | Ground |
|
| 0.4(4~12.4GHz) |
|
|
|
|
|
|
| 0.5(12.4~18GHz) |
|
|
|
|
|
RFSP6T18EMA-T | DC~18.000 | 0.2(DC~4GHz) | 75(DC~18GHz) | 1 | 20 | SMA | TTL 5V |
|
| 0.4(4~12.4GHz) |
|
|
|
|
|
|
| 0.5(12.4~18GHz) |
|
|
|
|
|
RFSP4T18EMA-T | DC~18.000 | 0.2(DC~4GHz) | 75(DC~18GHz) | 1 | 20 | SMA | TTL 5V |
|
| 0.4(4~12.4GHz) |
|
|
|
|
|
|
| 0.5(12.4~18GHz) |
|
|
|
|
|
RFSP4T18EMB-S | DC~18.000 | 0.2(DC~4GHz) | 75(DC~18GHz) | 1 | 20 | SMA | Ground |
|
| 0.4(4~12.4GHz) |
|
|
|
|
|
|
| 0.5(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMB-T | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | TTL 5V |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMB-S | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | Ground |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMF-T | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | TTL 5V |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMF-S | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | Ground |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMC-T | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | TTL 5V |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT18EMC-S | DC~18.000 | 0.3(DC~12.4 GHz) | 60(DC~18GHz) | 1 | 20 | SMA | Ground |
|
| 0.6(12.4~18GHz) |
|
|
|
|
|
RFSPDT26EMA | DC~26.500 | 0.5(DC~12.4 GHz) | 60(DC~12.4 GHz) | 1 | 20 | 3.5mm | Ground |
|
| 0.8(12.4~26.5GH) | 60(12.4~26.5GHz) |
|
|
|
|
RFDPDT26EMA | DC~26.500 | 0.25(DC~3GHz) | 80(DC~3GHz) | 1 | 20 | SMA | TTL 5V & Ground |
|
| 0.4(3~6GHz) | 70(3~6GHz) |
|
|
|
|
|
| 0.5(6~12.4GHz) | 60(6~12.4GHz) |
|
|
|
|
|
| 0.7(12.4~26.5GHz) | 55(12.4~26.5GHz) |
|
|
|
|
RFSP6T26EMA-S | DC~26.500 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 3.5mm | Ground |
|
| 0.5(4~12.4GHz) | 70(4~12.4GHz) |
|
|
|
|
|
| 0.7(12.4~26.5GHz) | 60 (12.4~26.5GHz) |
|
|
|
|
RFSP6T26EMA-T | DC~26.500 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 3.5mm | TTL 5V |
|
| 0.5(4~12.4GHz) | 70(4~12.4GHz) |
|
|
|
|
|
| 0.7(12.4~26.5GHz) | 60 (12.4~26.5GHz) |
|
|
|
|
RFSP4T26EMA-T | DC~26.500 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 3.5mm | TTL 5V |
|
| 0.5(4~12.4GHz) | 70(4~12.4GHz) |
|
|
|
|
|
| 0.7(12.4~26.5GHz) | 60 (12.4~26.5GHz) |
|
|
|
|
RFSP4T26EMA-S | DC~26.500 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 3.5mm | Ground |
|
| 0.5(4~12.4GHz) | 70(4~12.4GHz) |
|
|
|
|
|
| 0.7(12.4~26.5GHz) | 60 (12.4~26.5GHz) |
|
|
|
|
RFSPDT26EMB-T | DC~26.500 | 0.3(DC~12.4 GHz) | 60(DC~26.5GHz) | 1 | 20 | 3.5mm | TTL 5V |
|
| 0.6(12.4~26.5GHz) |
|
|
|
|
|
RFSPDT26EME-T | DC~26.500 | 0.3(DC~12.4 GHz) | 60(DC~26.5GHz) | 1 | 20 | 3.5mm | TTL 5V |
|
| 0.6(12.4~26.5GHz) |
|
|
|
|
|
RFSPDT26EME-S | DC~26.500 | 0.3(DC~12.4 GHz) | 60(DC~26.5GHz) | 1 | 20 | 3.5mm | Ground |
|
| 0.6(12.4~26.5GHz) |
|
|
|
|
|
RFSPDT40EMA | DC~40.000 | 1.5(DC~26.5 GHz) | 50(DC~26.5 GHz) | 1 | 20 | 2.4mm | Ground |
|
| 2.0(26.5~40 GHz) | 35(26.5~40 GHz) |
|
|
|
|
RFSP6T40EMA-S | DC~40.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.92mm | Ground |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2(26.5~40GHz) | 60 (26.5~40GHz) |
|
|
|
|
RFSP6T40EMA-T | DC~40.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.92mm | TTL 5V |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2(26.5~40GHz) | 60 (26.5~40GHz) |
|
|
|
|
RFSP4T40EMA-T | DC~40.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.92mm | TTL 5V |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2(26.5~40GHz) | 60 (26.5~40GHz) |
|
|
|
|
RFSP4T40EMA-S | DC~40.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.92mm | Ground |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2(26.5~40GHz) | 60 (26.5~40GHz) |
|
|
|
|
RFSPDT40EMB-T | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | TTL 5V |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFSPDT40EMB-S | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | Ground |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFSPDT40EMD-T | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | TTL 5V |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFSPDT40EMD-S | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | Ground |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFSPDT40EMC-T | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | TTL 5V |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFSPDT40EMC-S | DC~40.000 | 0.4(DC~10GHz) | 80(DC~10GHz) | 1 | 20 | 2.92mm | Ground |
|
| 0.8 (10~20GHz) | 70(10~20GHz) |
|
|
|
|
|
| 1.0(20~40GHz) | 60(20~40GHz) |
|
|
|
|
RFDPDT50EMA | DC~50.000 | 0.3(DC~4GHz) | 50(DC~50GHz) | 1 | 20 | 2.4mm | TTL 5V & Ground |
|
| 1.0(4~20GHz) |
|
|
|
|
|
|
| 1.2(20~40GHz) |
|
|
|
|
|
|
| 1.5(40~50GHz) |
|
|
|
|
|
RFSP6T50EMA-S | DC~50.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.4mm | Ground |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2 (26.5~50GHz) | 60 (26.5~50GHz) |
|
|
|
|
RFSP6T50EMA-T | DC~50.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.4mm | TTL 5V |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2 (26.5~50GHz) | 60 (26.5~50GHz) |
|
|
|
|
RFSP4T50EMA-T | DC~50.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.4mm | TTL 5V |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2 (26.5~50GHz) | 60 (26.5~50GHz) |
|
|
|
|
RFSP4T50EMA-S | DC~50.000 | 0.2(DC~4GHz) | 80(DC~4GHz) | 1 | 20 | 2.4mm | Ground |
|
| 0.8(4~26.5GHz) | 70(4~26.5GHz) |
|
|
|
|
|
| 1.2 (26.5~50GHz) | 60 (26.5~50GHz) |
|
|
|
|
RFSPDT50EMB-T | DC~50.000 | 0.4(10MHz~10GHz) | 85(10MHz~10GHz) | 1 | 20 | 2.4mm | TTL 5V |
|
| 0.8 (10GHz~20GHz) | 77(10GHz~20GHz) |
|
|
|
|
|
| 1.2(20GHz~50GHz) | 70(20GHz~50GHz) |
|
|
|
|
RFSPDT50EMB-S | DC~50.000 | 0.4(10MHz~10GHz) | 85(10MHz~10GHz) | 1 | 20 | 2.4mm | Ground |
|
| 0.8 (10GHz~20GHz) | 77(10GHz~20GHz) |
|
|
|
|
|
| 1.2(20GHz~50GHz) | 70(20GHz~50GHz) |
|
|
|
|
RFSPDT50EMC-T | DC~50.000 | 0.4(DC~10GHz) | 85(DC~10GHz) | 1 | 20 | 2.4mm | TTL 5V |
|
| 0.8 (10~20GHz) | 77(10~20GHz) |
|
|
|
|
|
| 1.2(20~50GHz) | 70(20~50GHz) |
|
|
|
|
RFSPDT50EMC-S | DC~50.000 | 0.4(DC~10GHz) | 85(DC~10GHz) | 1 | 20 | 2.4mm | Ground |
|
| 0.8 (10~20GHz) | 77(10~20GHz) |
|
|
|
|
|
| 1.2(20~50GHz) | 70(20~50GHz) |
|
|
|
|
RFSPDT67EMB-T | DC~67.000 | 0.6(10MHz~10GHz) | 85(10MHz~10GHz) | 1 | 20 | 1.85mm | TTL 5V |
|
| 0.8 (10GHz~20GHz) | 77(10GHz~20GHz) |
|
|
|
|
|
| 1.5(20GHz~67GHz) | 70(20GHz~67GHz) |
|
|
|
|
RFSPDT67EMB-S | DC~67.000 | 0.6(10MHz~10GHz) | 85(10MHz~10GHz) | 1 | 20 | 1.85mm | Ground |
|
| 0.8 (10GHz~20GHz) | 77(10GHz~20GHz) |
|
|
|
|
|
| 1.5(20GHz~67GHz) | 70(20GHz~67GHz) |
|
|
|
|
RFSPDT67EMC-T | DC~67.000 | 0.6(DC~10GHz) | 85(DC~10GHz) | 1 | 20 | 1.85mm | TTL 5V |
|
| 0.8 (10~20GHz) | 77(10~20GHz) |
|
|
|
|
|
| 1.5(20~67GHz) | 70(20~67GHz) |
|
|
|
|
RFSPDT67EMC-S | DC~67.000 | 0.6(DC~10GHz) | 85(DC~10GHz) | 1 | 20 | 1.85mm | Ground |
|
| 0.8 (10~20GHz) | 77(10~20GHz) |
|
|
|
|
|
| 1.5(20~67GHz) | 70(20~67GHz) |
|
|
|
|
