HMC-ABH209/HMC-ABH209-SX功率放大器頻率范圍為55至65 GHz ADI現貨

發布時間：2018-06-27 11:54:09     瀏覽：2692

THMC-ABH209是一款高動態范圍、兩級GaAs HEMT MMIC中等功率放大器，工作頻率范圍為55至65 GHz。 HMCABH209提供13 dB增益，采用+5V電源電壓時具有+16 dBm輸出功率（1dB壓縮）。 所有焊盤和芯片背面都經過Ti/Au金屬化，放大器已完全鈍化以實現可靠操作。

HMC-ABH209 GaAs HEMT MMIC中等功率放大器兼容傳統的芯片貼裝方式，以及熱壓縮和熱超聲線焊工藝，非常適合MCM和混合微電路應用。 此處顯示的所有數據均是芯片在50 Ω環境下使用RF探頭接觸測得。

THMC-ABH209應用

  • 短程/高容量鏈路
  • 無線LAN網橋

  • 軍事和太空


THMC-ABH209優勢和特點

  • 輸出IP3： +25 dBm
  • P1dB： +16 dBm
  • 增益： 13 dB
  • 電源電壓： +5V
  • 50 Ω匹配輸入/輸出
  • 裸片尺寸： 2.2 x 1.22 x 0.1 mm

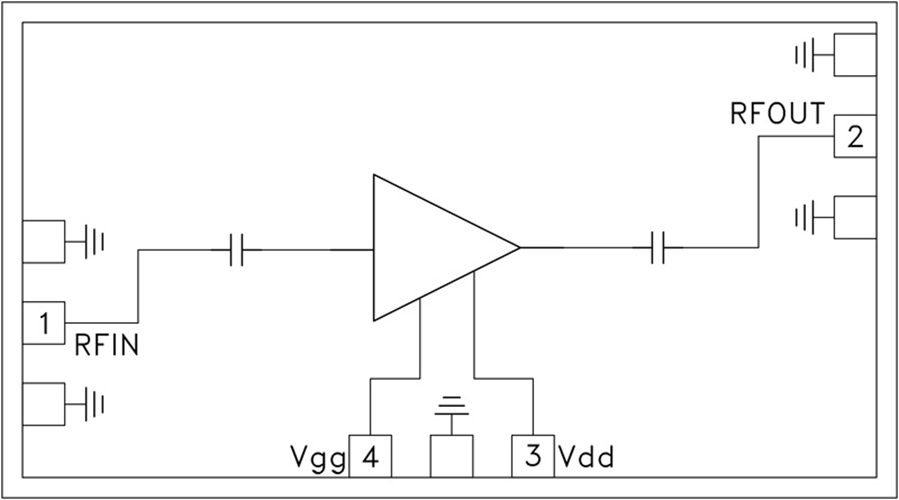

THMC-ABH209結構圖
