HMC6981LS6/HMC6981LS6TR四級GaAs pHEMT MMIC功率放大器 ADI現貨

發布時間：2018-06-22 17:03:56     瀏覽：2469

HMC6981是一款四級GaAs pHEMT MMIC功率放大器，片上集成溫度補償功率檢波器，工作頻率范圍為15至20 GHz。 該放大器的增益為26 dB，飽和輸出功率為+34.5 dBm，PAE為25%，電源電壓為+6V。 HMC6981提供+43.5 dBm的出色輸出IP3性能，非常適合線性應用，比如高容量點對點或點對多點無線電或SATCOM應用——這類應用要求具有+34.5 dBm的高效飽和輸出功率。 HMC6981采用陶瓷6 x 6 mm高頻氣腔封裝，具有低熱阻，并且與大規模表貼制造技術兼容。 RF I/O內部匹配至50 Ω。


品牌 型號 描述 貨期 庫存
ADI HMC6981LS6
HMC6981LS6TR 		2 W功率放大器SMT，15 - 20 GHz 現貨 123


HMC6981應用

  • 點對點無線電
  • 點對多點無線電

  • SATCOM


HMC6981優勢和特點

  • P1dB輸出功率： +33.5 dBm
  • 25% PAE (+34.5 dBm Pout)
  • 增益： 26 dB
  • 輸出IP3： +43.5 dBm
  • 50 Ω匹配輸入/輸出
  • 陶瓷6x6 mm高頻氣腔封裝

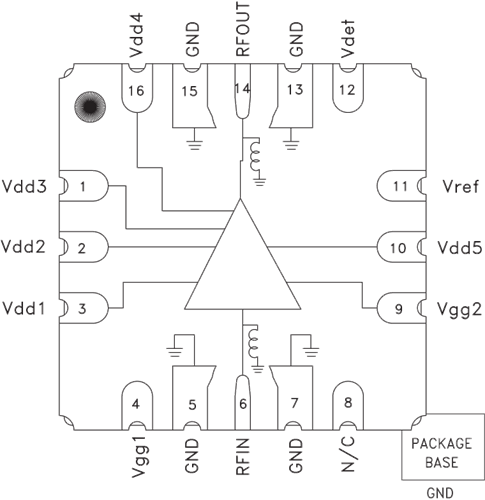

HMC6981結構圖
